PBS-420 Single Spiral Wire Punching and Binding Machine

Perfect machine used for printing factory to produce single wire notebook job. It include paper feeding part , paper hole punching part ,spiral forming, spiral binding and scissor locking part with book collect part .

Parameters

Product details

Details

Advantages

■ This machine has the functions of automatic layered feeding, automatic layered punching, automatic book hole calibration, automatic book feeding and binding, automatic coil forming, and automatic book collection.

■ This machine only needs 1-2 ordinary operators to complete.

■ High-quality punching mold, the thickest one can punch 6mm.

■ Notebooks and desk calendars with cover and back cover larger than the inner pages can automatically identify the size of the cover and back cover in layers and perform punching and binding in batches.

■ Automatic coil calibration function.

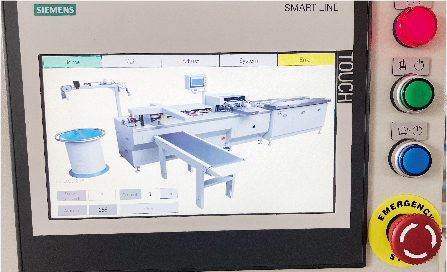

■ Automatic fault prompt function.

■ L-type scissor locking or G-type scissor locking can be selected.

Technical data

Item	Specification
Model No.	FD-400PBF
Work Speed	800-1,800 books/hour
Punch Thickness per time	1-6mm
Max. Punch Thickness	15mm
Max. Punch Times	5 times
Punching Die Type	Double-row
Max. Binding Thick	15mm
Spiral Dia	6mm – 25mm
Max binding width	420mm * 420mm
Min binding width	70mm * 105mm
G type back hook scissors range	12mm – 25mm
L type common hook scissors range	6mm – 25mm
Spiral hole pitch optional range	5mm, 6mm, 6.35mm, 8mm, 8.47mm
Air pressure	0.5-0.8Mpa (3KW)
Power	380v/3ph/6KW
Overall Dimension (LWH)	4000 * 2500 * 1600 mm
Net Weight	1,500 KGS

Specification

Binding Thickness	Inner Spiral Dia.	Wire Dia.	Recommend Hole Dia.
4mm	8mm	0.7-0.8mm	4mm
6mm	10mm	0.8-0.9mm	4mm
8mm	12mm	0.9-1.0mm	4.5mm
10mm	14mm	1.0-1.1mm	4.5mm
12mm	16mm	1.1-1.2mm	4.5mm
14mm	18mm	1.1-1.2mm	4.5mm
16mm	20mm	1.1-1.2mm	4.5mm
18mm	22mm	1.1-1.2mm	5mm
20mm	25mm	1.1-1.2mm	5mm
